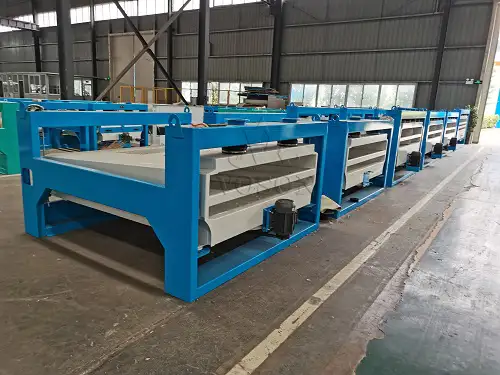

TQLM Series Plane Rotation Sieve
- Capacity: 4-20t/h
Voson TQLM Series Plane Rotation Sieve – high-efficiency grain cleaning machine for wheat, corn, and other grains. Features dual-layer sieves, uniform feeding, and low-power operation.
Voson TQLM Series Plane Rotation Sieve – high-efficiency grain cleaning machine for wheat, corn, and other grains. Features dual-layer sieves, uniform feeding, and low-power operation.

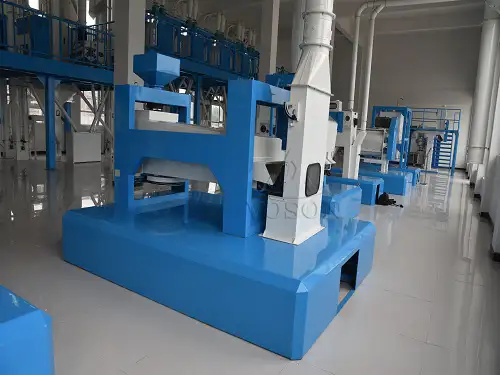

The TQLM Series Plane Rotation Sieve, manufactured by Henan Voson Grain Engineering Machinery Co., Ltd., is an ideal solution for medium- to low-capacity impurity removal in flour mills, seed processing plants, and feed production lines. It efficiently separates dust, husks, broken grains, and other impurities from wheat, corn, and other grains, ensuring high-quality output and improving downstream processing efficiency.
Get a Free Quote and Details !
| Model | Wheat Capacity (t/h) | Screen Area (m²) | Speed (r/min) | Power (kW) | Air Suction Volume (m³/h) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| TQML80 | 4 - 6 | 0.8 | 300 | 0.55 | 3600 | 750 | 2300×1210×1320 |
| TQML100 | 6 - 8 | 1.0 | 300 | 0.55 | 4800 | 800 | 2300×1410×1320 |
| TQML125 | 8 - 12 | 1.25 | 300 | 0.75 | 5400 | 850 | 2300×1660×1320 |
| TQML160 | 10 - 15 | 1.6 | 300 | 1.1 | 6000 | 900 | 2300×2010×1320 |
| TQML200 | 15 - 20 | 2.0 | 300 | 1.5 | 7200 | 1100 | 2800×2410×1370 |
Reliable Screen Pressing and Sealing: The sieve frames are tightly pressed, ensuring excellent sealing to prevent material leakage.
Two-layer Sieve Design: Each layer has two sieve frames to meet various material cleaning requirements.
High Cleaning Efficiency: The sieve body is equipped with a damping mechanism that allows the material to perform circular, elliptical, and linear motions, enhancing impurity removal.
Easy Installation and Adjustment: The machine uses a steel-wire suspension system, allowing simple and convenient adjustments.
Observation Window: Located at the top for easy inspection and cleaning of the sieve surface.
Uniform Feeding Structure: Ensures consistent distribution of material across the sieve surface for optimal cleaning.
Flexible Sieve Hole Design: Long or round perforated sieve holes can be configured according to processing needs.
Premium Materials and Surface Treatment: Made using advanced materials and electrostatic powder coating for durability and long service life.
Get a Free Quote and Details !
Voson’s TQLM series screen stands out for its reliability and ease of use. The sieve frame adopts a tight sealing design to prevent material leakage, and the machine body is suspended by steel wire ropes, providing smooth motion and convenient adjustment. An observation window at the top allows operators to check screening conditions easily.
The feeding section includes a uniform distribution device that ensures steady material flow, which directly enhances the cleaning effect. Depending on processing requirements, users can select long or round perforated sieves for different types of grains.
