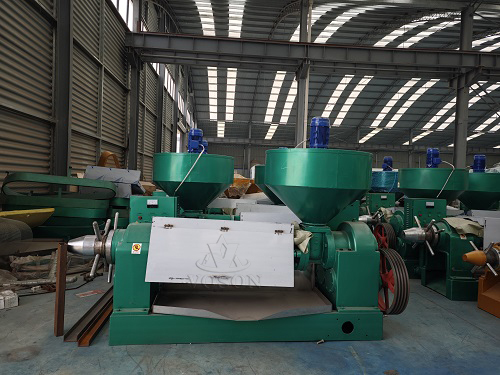

Screw Oil Press Machine
- Capacity: 100KG/H--2T/H
Voson’s screw oil press adopts advanced screw extrusion technology, ensuring high oil yield, low residue, and stable operation for modern edible oil production lines.
Voson’s screw oil press adopts advanced screw extrusion technology, ensuring high oil yield, low residue, and stable operation for modern edible oil production lines.

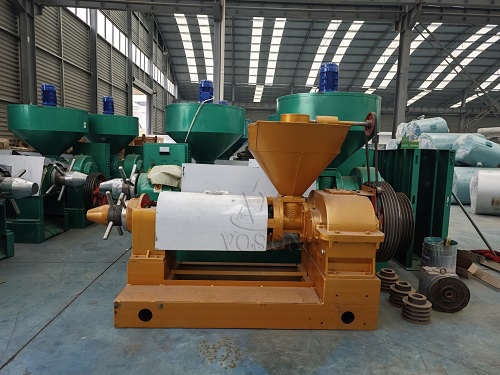

The Screw Oil Press Machine, also known as the oil expeller or oil extraction machine, is the core equipment in the edible oil pressing section. It is widely used in small, medium, and large-scale oil press lines to extract vegetable oil from various oilseeds such as soybean, peanut, sunflower, rapeseed, sesame, and cottonseed.
This machine adopts a continuous screw extrusion structure, combining mechanical pressure and frictional heat to release oil efficiently. The pressed crude oil is clear and of high purity, while the residual oil content in the cake remains low. Voson’s screw oil press machines are manufactured with high-strength alloy steel, precision machining, and automatic temperature control systems, ensuring stable performance, durability, and high oil yield.
Get a Free Quote and Details !
| Model | Capacity (kg/h) | Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| 6YL-80 | 100–150 | 5.5–7.5 | 330 | 1320×540×1020 |
| 6YL-95 | 200–250 | 7.5–11 | 620 | 1870×640×1200 |
| 6YL-100 | 250–300 | 11 | 650 | 1950×700×1300 |
| 6YL-120 | 350–400 | 15 | 850 | 2100×800×1400 |
| 6YL-130 | 400–500 | 18.5 | 1100 | 2200×850×1500 |
| 6YL-160 | 600–800 | 22 | 1500 | 2500×900×1600 |
| 6YL-180 | 1000–1200 | 30 | 2200 | 2700×1000×1700 |
(Custom models available for large-scale industrial oil production lines.)
High Oil Yield and Efficiency – Optimized screw design maximizes extraction rate.
Wide Range of Oilseeds – Suitable for soybean, sunflower, peanut, sesame, rapeseed, palm kernel, and cottonseed.
Durable and Reliable – Alloy steel screw shaft and precision-machined cage ensure a long service life.
Energy-Saving Design – Advanced gearbox structure minimizes power loss.
Cold and Hot Press Options – Optional heating system for flexible operation.
Easy Maintenance – Compact layout, convenient residue discharge, and simple operation.
Integration in Complete Oil Press Line – Compatible with oil filtration, refining, and packaging systems for turnkey projects.
Get a Free Quote and Details !
The screw oil press machine is installed after the seed pretreatment equipment (cleaning, crushing, flaking, and cooking). It works as the main oil extraction unit in a complete edible oil production line, followed by oil filter and refining machines to obtain pure and high-quality edible oil.
Voson provides full turnkey solutions for oil press lines and edible oil plants, ensuring efficiency and reliability from seed to bottled oil.
