Palm Oil Production Project
Voson Machinery provides complete turnkey palm oil production line designed for high efficiency, stable output, and premium oil quality. Our solutions cover the entire process from fresh fruit bunch (FFB) handling, sterilization, threshing, pressing, clarification, to refining and packaging. With decades of experience in palm oil engineering, Voson ensures each plant is optimized for local raw material conditions, energy availability, and labor skills, delivering reliable and scalable projects.
Process Flow of Palm Oil Production Line

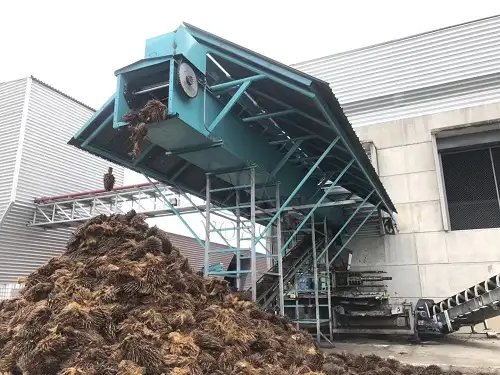

Fresh Fruit Bunch (FFB) Handling
Fresh palm fruit bunches are mechanically unloaded, weighed, and transported to the sterilization area.
Sterilization
FFBs are sterilized with high-pressure steam to loosen fruit from bunches, inactivate enzymes, and improve oil extraction efficiency.
Threshing
Sterilized bunches are fed into a mechanical thresher to separate palm fruits from the bunch stalks.
Fruit Digestion and Pressing
Separated fruits are crushed and digested to release crude palm oil. Mechanical screw presses or hydraulic presses extract the oil.

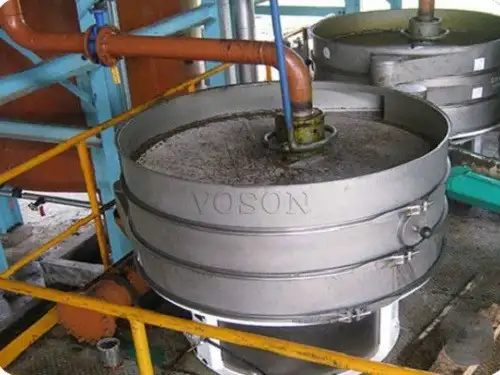

Clarification
Crude palm oil is clarified using settling tanks or centrifuges to remove water, solids, and impurities.
Filtration and Refining
The clarified oil undergoes degumming, neutralization, bleaching, and deodorization to meet edible oil standards.
Storage and Packaging
Refined palm oil is stored in stainless steel tanks and packaged for local consumption or export.
Technical Parameters (Example: 50TPD Palm Oil Production Line)
| Item | Specification |
|---|---|
| Capacity | 50 tons fresh fruit bunch per day |
| Oil Yield | 18%–22% from FFB, 45%–50% from kernels |
| Main Equipment | FFB conveyor, sterilizer, thresher, digester, screw press, clarifier, plate frame filter, refining system |
| Power Requirement | 250–300 kW |
| Plant Area | 1,800–2,200 m² |
| Operation Mode | Continuous, automated with PLC control |
| Workforce Needed | 12–18 staff per shift |
Voson palm oil production lines are ideal for regions with abundant palm cultivation such as Indonesia, Malaysia, Nigeria, Ghana, and other parts of West Africa and Southeast Asia. Our engineering team designs each plant based on local FFB characteristics, climate, energy supply, and labor availability, ensuring optimal performance and profitability.
Key Advantages of Voson Palm Oil Projects
Turnkey Engineering Solutions – design, manufacturing, installation, commissioning, and training.
High Oil Recovery – optimized sterilization, digestion, and pressing processes maximize yield.
Flexible Scale – suitable for 10TPD to 500TPD FFB processing lines.
Energy-Efficient Operations – advanced equipment reduces power consumption.
Proven Global Experience – successful projects in Africa and Southeast Asia demonstrate reliability.
Products and By-Products
Refined Palm Oil – widely used in cooking, bakery, and food processing industries.
Palm Kernel Oil – obtained from kernels, used in edible oil, cosmetics, and soap production.
Palm Kernel Cake – protein-rich by-product used as animal feed.
